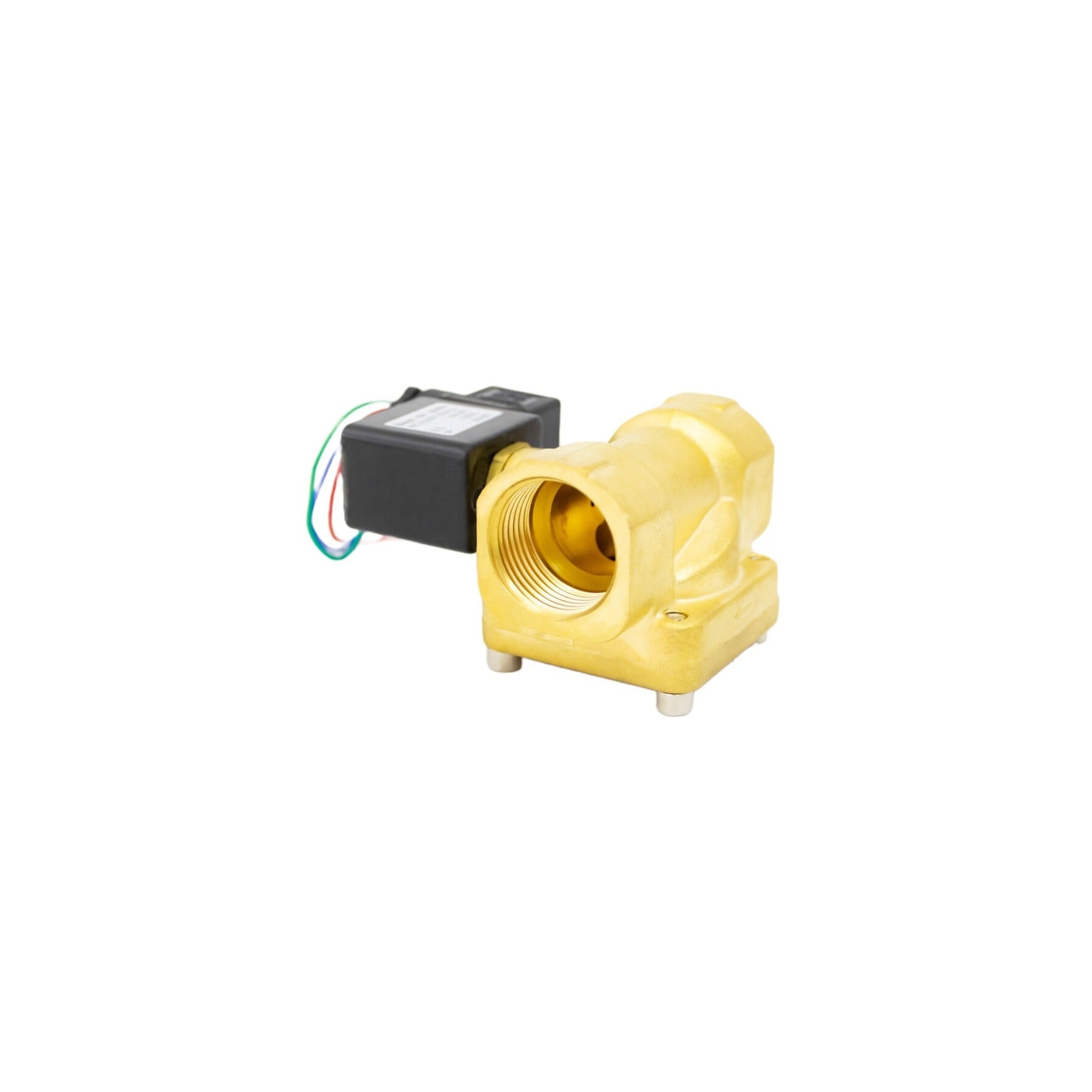

25mm Brass Solenoid Valve 1 inch 220V
25mm Brass Solenoid Valve 1 inch 220V
Couldn't load pickup availability
Take full control of your water system with the 25mm Brass Solenoid Valve (1inch, 220V) — a heavy-duty, precision-engineered component designed for automated and reliable water flow management. Built with a solid brass body and configured for 220V operation, this valve delivers consistent performance in demanding environments such as irrigation networks, industrial systems, and household filtration setups.
Its normally closed design ensures water flow only when activated, providing both efficiency and safety. Perfect for those who demand durability, stability, and precision in every drop.
Key Benefits:
• Automatic on/off water control with 220V power actuation
• 25mm (1inch) brass body for durability and corrosion resistance
• Normally Closed (NC) configuration for safety and efficiency
• Suitable for irrigation, industrial, and household systems
• Easy installation with threaded fittings for quick setup
Upgrade your water system with the 25mm Brass Solenoid Valve (1inch, 220V) — built to last, engineered for precision, and trusted for performance.
Product features
Product features
1inch (25mm) Brass Solenoid Valve
220V AC Power Supply
Normally Closed Configuration (Opens When Energized)
High-Strength Brass Body
Corrosion-Resistant and Leak-Proof
Quick-Connect Threaded Fittings
Automatic Water Flow Control
Filtration Details
Filtration Details
Application: Automated Water Flow Control for Irrigation, Industrial & Filtration Systems
Connection Size: 1inch BSP (25mm) Threaded Ports
Material: Solid Brass Body with Copper Coil
Coil Voltage: 220V AC
Operation Type: Normally Closed (Opens When Powered)
Flow Direction: One-Way
Operating Pressure: 0–120 PSI
Temperature Range: 0°C – 80°C
Seal Material: NBR Rubber
Coil Protection Rating: IP65 (Moisture Resistant)
Cycle Life: >1,000,000 Operations
Compatibility: Ideal for Water, Air, Light Oil, and Other Non-Corrosive Liquids
How it Works
How it Works
The 25mm Brass Solenoid Valve operates automatically via an electromagnetic coil.
When 220V AC power is applied, the coil energizes, lifting the plunger and allowing water to flow through the valve. When power is cut, the plunger seals shut, stopping the flow instantly — ensuring precision control and system safety.
Installation and Maintanence
Installation and Maintanence
1. Confirm voltage compatibility (220V AC only) before installation
2. Connect inlet and outlet to 1inch BSP threaded pipes
3. Ensure flow direction matches the arrow on the valve body
4. Connect the coil to your power source using insulated terminals
5. Keep coil dry and clean; inspect regularly for debris or corrosion
Technical Specifications
Technical Specifications
Model: 25mm Brass Solenoid Valve
Connection Size: 1inch BSP (25mm)
Material: Solid Brass Body + Copper Coil
Voltage: 220V AC
Configuration: Normally Closed (NC)
Flow Direction: One-Way
Protection Class: IP65
Dimensions: 13cmx10cmx7cm
Weight: 0.95k
Colour: Brass
Warranty Information
Warranty Information
12 Month limited warranty covering electrical or material defects under standard operating conditions.
Excludes damage due to improper voltage, contamination, or exposure to corrosive fluids.
For assistance, contact The Water Filter Factory support team.
What's in the box
What's in the box
1 × 25mm Brass Solenoid Valve (1inch, 220V)
