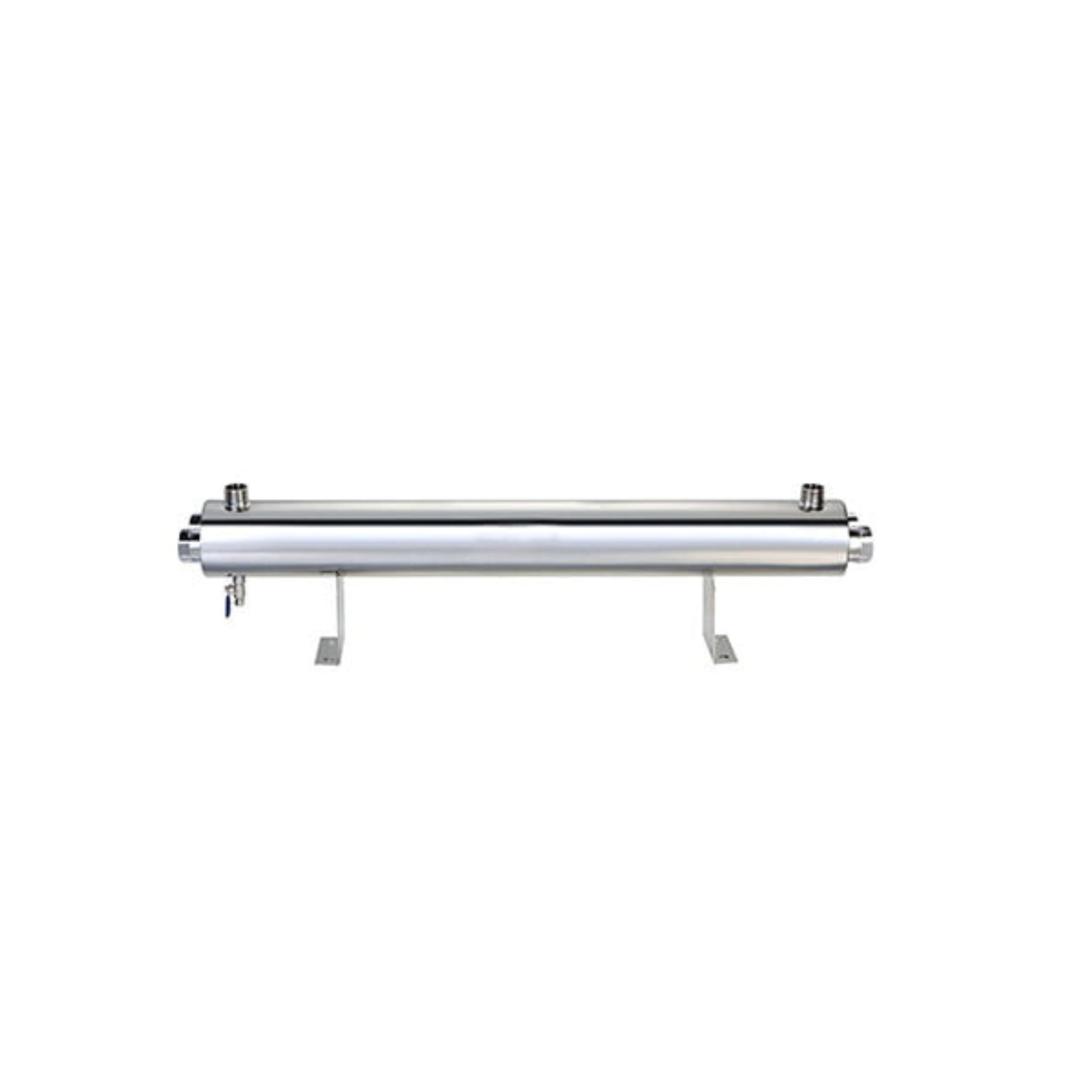

4 Pin UV Steriliser 110W 90L/Min - 1 inch Ports
4 Pin UV Steriliser 110W 90L/Min - 1 inch Ports
Couldn't load pickup availability
Conquer high-volume water purification with the SUPERPURE 4-Pin UV Steriliser 110W 90L/Min — a powerhouse engineered for industrial-grade sterilization and consistent 24/7 operation. Delivering up to 99.9% bacterial and viral elimination, this system ensures maximum water purity for even the most demanding applications.
Built with 1-inch inlet and outlet ports, it integrates seamlessly into heavy-duty systems — from industrial processing to aquaculture and commercial water treatment setups.
Key Benefits:
• 110W UV power eliminates up to 99.9% of bacteria and microorganisms
• Massive 90L/min flow rate for high-capacity disinfection
• 1-inch stainless steel ports for industrial-grade water lines
• Low-maintenance, plug-and-play operation
• Built for 24/7 reliability in demanding environments
Upgrade your large-scale water treatment system with the trusted power of SUPERPURE UV sterilization technology, designed to deliver exceptional disinfection performance without chemicals or compromise.
Product features
Product features
Powerful 110W UV Lamp
Flow Rate: 90L/min
Eliminates 99.9% of Microorganisms
1-Inch Inlet and Outlet Ports
Durable Stainless Steel Chamber
Continuous 24/7 Operation Design
Ideal for Industrial and Commercial Water Systems
Filtration Details
Filtration Details
Technology: Ultraviolet (UV) Sterilization
Effectiveness: Removes 99.9% of Bacteria, Viruses, Algae, and Microorganisms
Lamp Type: 4-Pin High-Intensity UV Lamp
Housing Material: Stainless Steel
Applications: Industrial Water Treatment, Food & Beverage Processing, Aquaculture, Municipal Water, Commercial Filtration
How it Works
How it Works
Water enters the stainless steel UV chamber, where it is exposed to a 110W UV-C lamp.
The ultraviolet light penetrates microbial DNA, effectively neutralizing bacteria, viruses, and pathogens — preventing reproduction and ensuring sterilized water output.
Installation and Maintanence
Installation and Maintanence
1. Install horizontally or vertically depending on flow direction
2. Compatible with 1-inch threaded water lines
3. Replace UV lamp every 12 months for optimal sterilization
4. Clean quartz sleeve periodically to maintain UV intensity
5. Ensure clear water (free of heavy sediment) for best performance
Technical Specifications
Technical Specifications
Model: SUPERPURE 4-Pin UV Steriliser 110W
Power: 110W
Flow Rate: 90L/min
Inlet/Outlet Ports: 1 Inch
Voltage: AC220V/50Hz
Lamp Life: 9000–12000 Hours
Sterilization Efficiency: 99.9%
Chamber Material: Stainless Steel
Operating Pressure: ≤8 Bar
Operating Temperature: 5–45°C
Dimensions: 21cmx42cmx103cm
Weight: 7.8kg
Cable Length: 1.5m
Warranty Information
Warranty Information
12 Month limited warranty covering UV lamp, ballast, and chamber manufacturing defects under normal operating conditions.
Contact The Water Filter Factory for technical support or replacement parts.
What's in the box
What's in the box
1 × SUPERPURE 4-Pin UV Steriliser (110W)
1 × Quartz Sleeve
1 × 4-Pin UV Lamp
1 × Power Supply Unit (Ballast)
1 × Mounting Hardware Set
