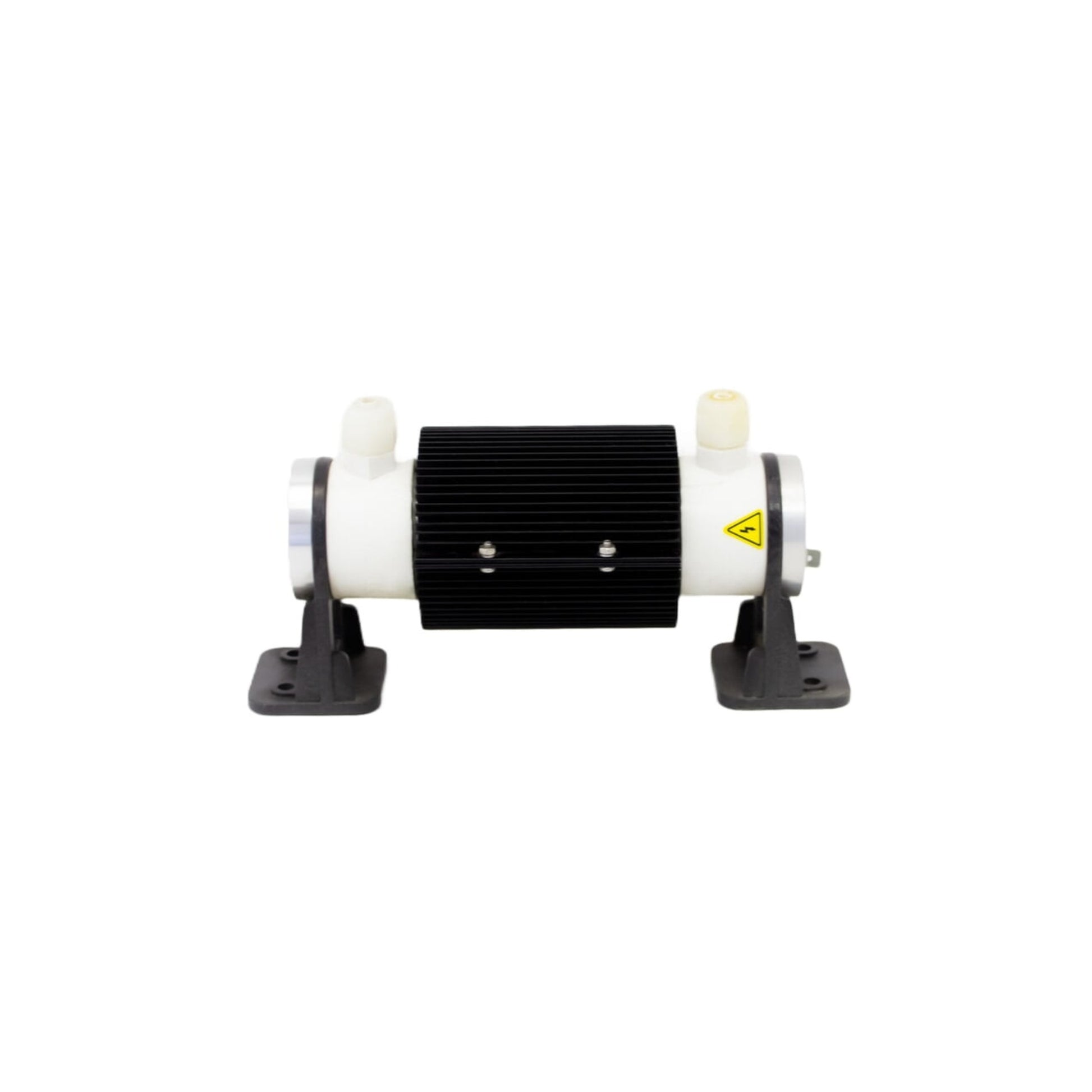

5g/h Ceramic Ozone Cell
5g/h Ceramic Ozone Cell
Couldn't load pickup availability
Harness the power of ozone for superior purification with the 5g/h Ceramic Ozone Cell — a high-efficiency component designed to generate ozone gas (O₃) for effective disinfection of water, air, and surfaces. Known for its ability to eliminate bacteria, viruses, and odours without harmful chemicals, this ceramic ozone cell is ideal for home, commercial, and industrial purification systems.
Built with precision and durability, the ceramic core ensures consistent ozone output and long-lasting performance. Whether you’re enhancing a water treatment setup, sterilizing air environments, or deodorizing enclosed spaces, this ozone generator cell delivers reliable, eco-friendly purification power.
Key Benefits:
• High Output Efficiency — Produces up to 5 grams of ozone per hour for effective disinfection.
• Durable Ceramic Construction — Ensures stability, heat resistance, and extended operational life.
• Versatile Applications — Suitable for water purification, air sterilization, and odour control.
• Chemical-Free Cleaning — Neutralizes microorganisms and organic pollutants naturally, without residues.
• Compact & Efficient Design — Easily integrates into new or existing ozone generator systems.
Experience a safer, fresher environment with the 5g/h Ceramic Ozone Cell — your powerful ally in advanced purification and sterilization technology.
Product features
Product features
5g/h Ozone Output Rate
Durable Ceramic Core Construction
Compatible with Most Ozone Generator Systems
Generates High-Purity Ozone Gas (O₃)
Energy-Efficient Operation
Ideal for Water, Air, and Surface Sterilization
Compact, Easy-to-Integrate Design
Filtration Details
Filtration Details
Function: Ozone Generation via Electrical Discharge
Output Capacity: 5g/h (5 grams per hour)
Ozone Purity: ≥98%
Material: High-Grade Ceramic and Stainless Steel Electrodes
Input Voltage: Typically 220V or 110V (depending on generator design)
Application Areas: Water Treatment, Air Purification, Odour Control, Industrial Cleaning
Operating Temperature: 5°C – 40°C
Humidity Range: ≤70% RH
How it Works
How it Works
The ceramic ozone cell uses high-voltage electrical discharge to split oxygen (O₂) molecules.
The resulting atoms recombine to form ozone (O₃) — a highly reactive oxidizer that kills bacteria, viruses, and organic contaminants.
Ozone then reverts naturally back to oxygen, leaving no chemical residue.
Installation and Maintanence
Installation and Maintanence
1. Install within an ozone generator unit or compatible disinfection system.
2. Ensure sufficient air cooling or ventilation for continuous operation.
3. Periodically clean ceramic surfaces with isopropyl alcohol or dry air to maintain output efficiency.
4. Replace the cell if ozone output decreases significantly.
Technical Specifications
Technical Specifications
Ozone Output: 5g/h
Material: Ceramic + Stainless Steel
Input Power: 60–80W (typical)
Operating Voltage: 220V/50Hz or 110V/60Hz
Dimensions: Compact module design
Weight: 0.9kg
Colour: White/Ceramic
Expected Lifespan: 5,000–8,000 operating hours
Warranty Information
Warranty Information
12 Month limited warranty covering manufacturing defects.
Excludes damage caused by improper wiring, overvoltage, or moisture exposure.
What's in the box
What's in the box
1 × 5g/h Ceramic Ozone Cell
