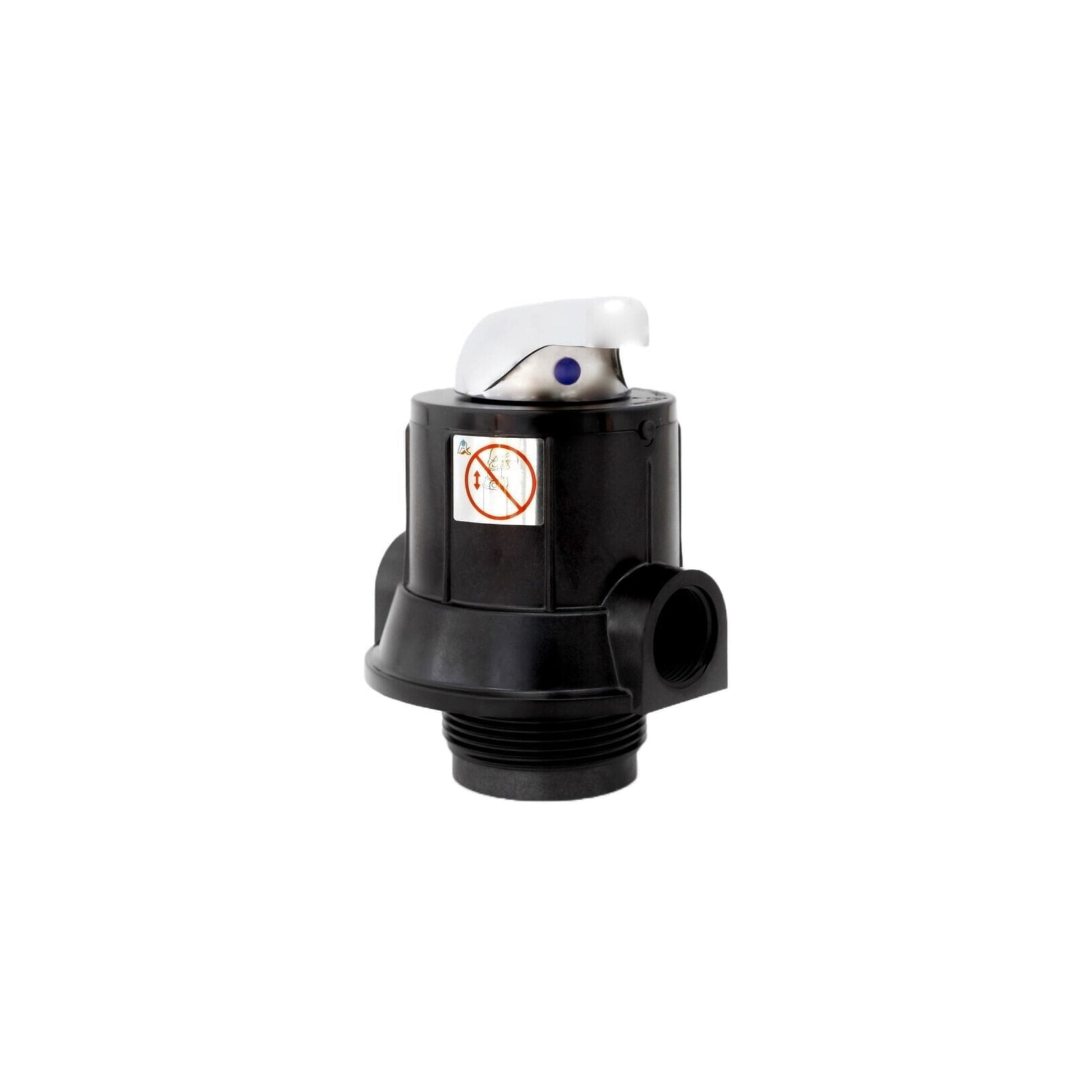

2.5" Runxin F56A1 Manual Backwash Valve 4M³/H
2.5" Runxin F56A1 Manual Backwash Valve 4M³/H
Couldn't load pickup availability
Take full control of your water filtration system with the Runxin F56A1 Manual Backwash Valve, designed to deliver reliable, efficient, and hands-on media cleaning.
Built for 2.5-inch top-opening FRP tanks, this robust valve allows you to manually backwash and rinse your filtration media — including silica sand, activated carbon, glass media, Birm, and calcite — ensuring long-term efficiency and crystal-clear water quality.
Featuring a 4 cubic meters per hour (4500L/h) flow rate and 1-inch threaded connections, the F56A1 provides superior hydraulic performance and simple operation through an ergonomic handle.
Key Benefits:
• Compatible with 2.5" top-opening FRP pressure vessels
• Manual operation for total control and easy maintenance
• High flow rate of 4M³/H (4500L/h) for efficient backwashing
• 1" female threaded ports for universal plumbing connections
• Durable construction for long service life
• Easy-to-use handle with clear position markings
Keep your filtration media clean, prevent clogging, and extend the life of your system with the reliable Runxin F56A1 Manual Backwash Valve — the perfect blend of performance and simplicity.
Product features
Product features
Manual Backwash Valve for 2.5" Top-Opening FRP Tanks
High Flow Capacity: 4M³/h (4500L/h)
1" Female Threaded Ports
Durable Construction for Long-Term Use
Easy Lever Operation for Backwash & Rinse Cycles
Compatible with Sand, Carbon, Glass, Birm & Calcite Filters
Filtration Details
Filtration Details
Type: Manual Multiport Backwash Valve
Model: Runxin F56A1
Mount Type: Top Mount (2.5" Opening)
Media Compatibility: Sand, Activated Carbon, Glass, Birm, Calcite
Ports: 1" Female BSP (Inlet/Outlet/Drain)
Flow Rate: 4M³/h (4500L/h)
Material: Engineering-Grade Plastic Body
Control Type: Manual Lever
Colour: Black
How it Works
How it Works
The Runxin F56A1 Manual Valve allows operators to manually initiate backwash and rinse cycles.
By rotating the handle, water reverses through the media bed, flushing out trapped dirt and sediment. This restores flow rate, prevents channeling, and prolongs filter media life.
Installation and Maintanence
Installation and Maintanence
1. Mount directly onto compatible 2.5" FRP tank openings
2. Connect inlet/outlet using 1" BSP threaded fittings
3. Turn handle to desired cycle position (Filter, Backwash, Rinse, Bypass)
4. Perform backwashing periodically or when pressure increases
5. No electrical connection required
Technical Specifications
Technical Specifications
Model: F56A1
Brand: Runxin
Tank Opening: 2.5" Top Mount
Flow Rate: 4M³/h (4500L/h)
Port Size: 1" Female BSP
Control Type: Manual
Working Pressure: 0.15–0.6MPa
Working Temperature: 5–45°C
Drain Connection: 1" Female BSP
Material: Reinforced Plastic Body
Dimensions: 15cm x 13cm x 17cm
Weight: 0.95kg
Warranty Information
Warranty Information
12-month limited warranty covering manufacturing defects.
Excludes damage caused by overtightening, chemical exposure, or operation outside recommended pressure/temperature ranges.
Warranty service supported by The Water Filter Factory team.
What's in the box
What's in the box
1 × Runxin F56A1 Manual Backwash Valve
