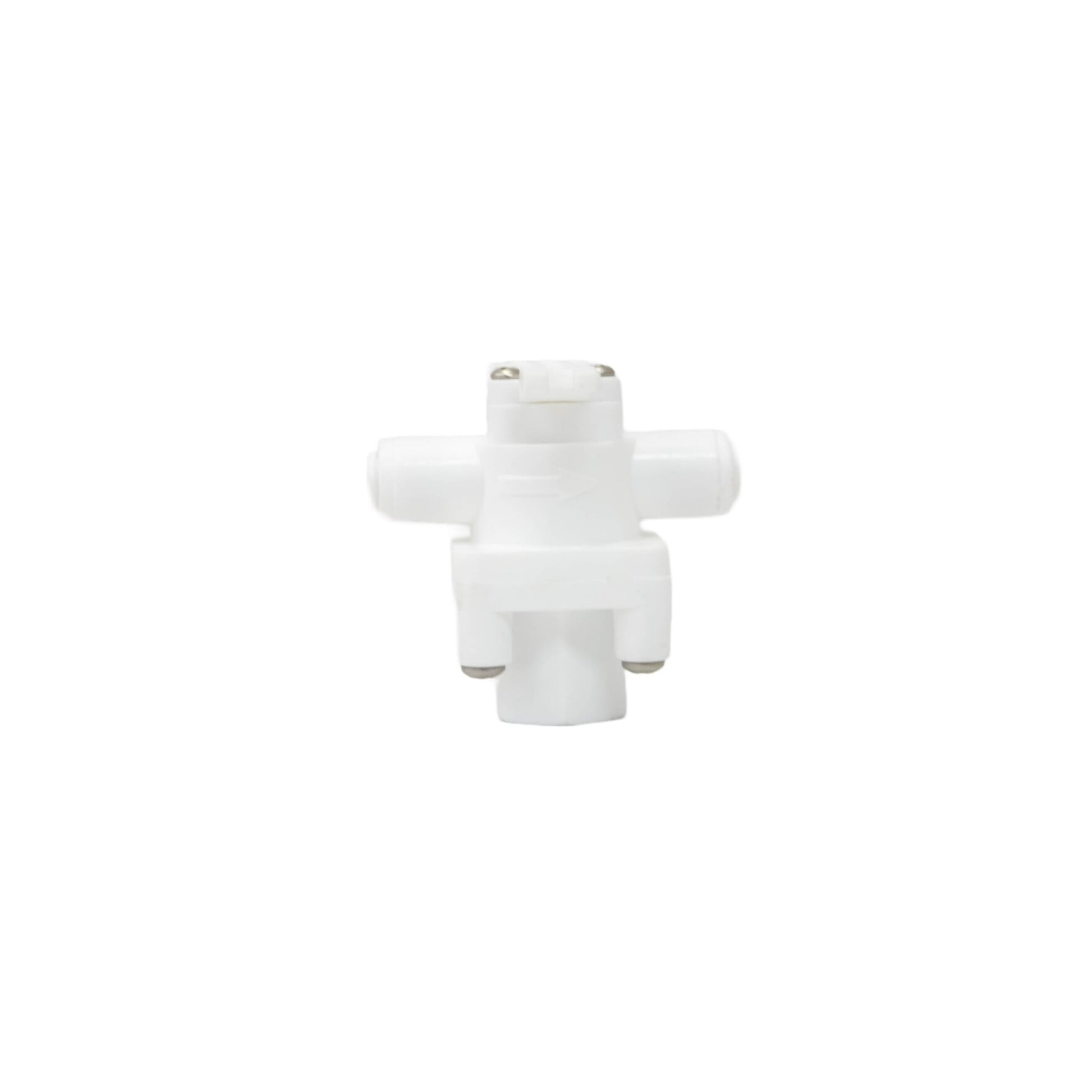

1/4 inch Plastic Pressure Reducing Valve (Economy)
1/4 inch Plastic Pressure Reducing Valve (Economy)
Couldn't load pickup availability
Ensure stability and efficiency in your water system with the 1/4inch Plastic Pressure Reducing Valve (Economy) — an affordable yet reliable solution for maintaining consistent water pressure. Designed for compact water filtration setups, this lightweight and durable valve helps protect your system from damage caused by high pressure, extending the lifespan of your filters, fittings, and tubing.
Perfect for residential RO systems, small irrigation lines, and drinking water applications, this economy model provides dependable performance at exceptional value.
Key Benefits:
• Regulates and stabilizes incoming water pressure for safe operation
• Prevents damage to filters, pipes, and fittings from pressure surges
• Compact, easy-to-install 1/4inch size ideal for small setups
• Durable plastic construction ensures long-lasting use
• Cost-effective solution for consistent water flow and efficiency
Protect and optimize your water system with the 1/4inch Plastic Pressure Reducing Valve (Economy) — dependable performance that won’t break your budget.
Product features
Product features
1/4inch Inline Pressure Reducing Valve
Economy Model – Affordable and Reliable
Durable Plastic Construction
Compact and Lightweight
Leak-Proof Quick-Connect Design
Filtration Details
Filtration Details
Application: Pressure Regulation for RO Systems and Water Filtration Units
Connection Type: 1/4inch Quick-Connect Push Fittings
Material: High-Grade Plastic (Polypropylene)
Pressure Regulation Range: 30–70 PSI (Adjustable)
Factory Set Pressure: 50 PSI (±5 PSI)
Flow Direction: One-Way
Operating Pressure: Up to 120 PSI
Temperature Range: 0°C – 50°C
Colour: White
Compatibility: Works with 1/4inch tubing used in reverse osmosis and countertop filter systems
How it Works
How it Works
The Pressure Reducing Valve automatically controls the pressure of incoming water by restricting the flow when pressure exceeds the preset level.
Installation and Maintanence
Installation and Maintanence
1. Ensure tubing is cut square and free of burrs
2. Connect 1/4inch inlet and outlet lines securely
3. Test water flow and monitor output pressure
4. Periodically check connections and clean internal components as needed
Technical Specifications
Technical Specifications
Model: 1/4inch Plastic Pressure Reducing Valve (Economy)
Connection Size: 1/4inch Quick-Connect
Material: Polypropylene Plastic
Adjustment Range: 30–70 PSI
Factory Setting: 50 PSI
Max Inlet Pressure: 120 PSI
Flow Direction: One-Way
Temperature Range: 0–50°C
Dimensions: 7cmx7cmx6cm
Weight: 0.6kg
Colour: White
Warranty Information
Warranty Information
12 Month limited warranty covering manufacturing defects and faulty fittings.
Excludes damage from overpressure, misuse, or chemical corrosion.
For warranty support, contact The Water Filter Factory team.
What's in the box
What's in the box
1 × 1/4inch Plastic Pressure Reducing Valve (Economy
