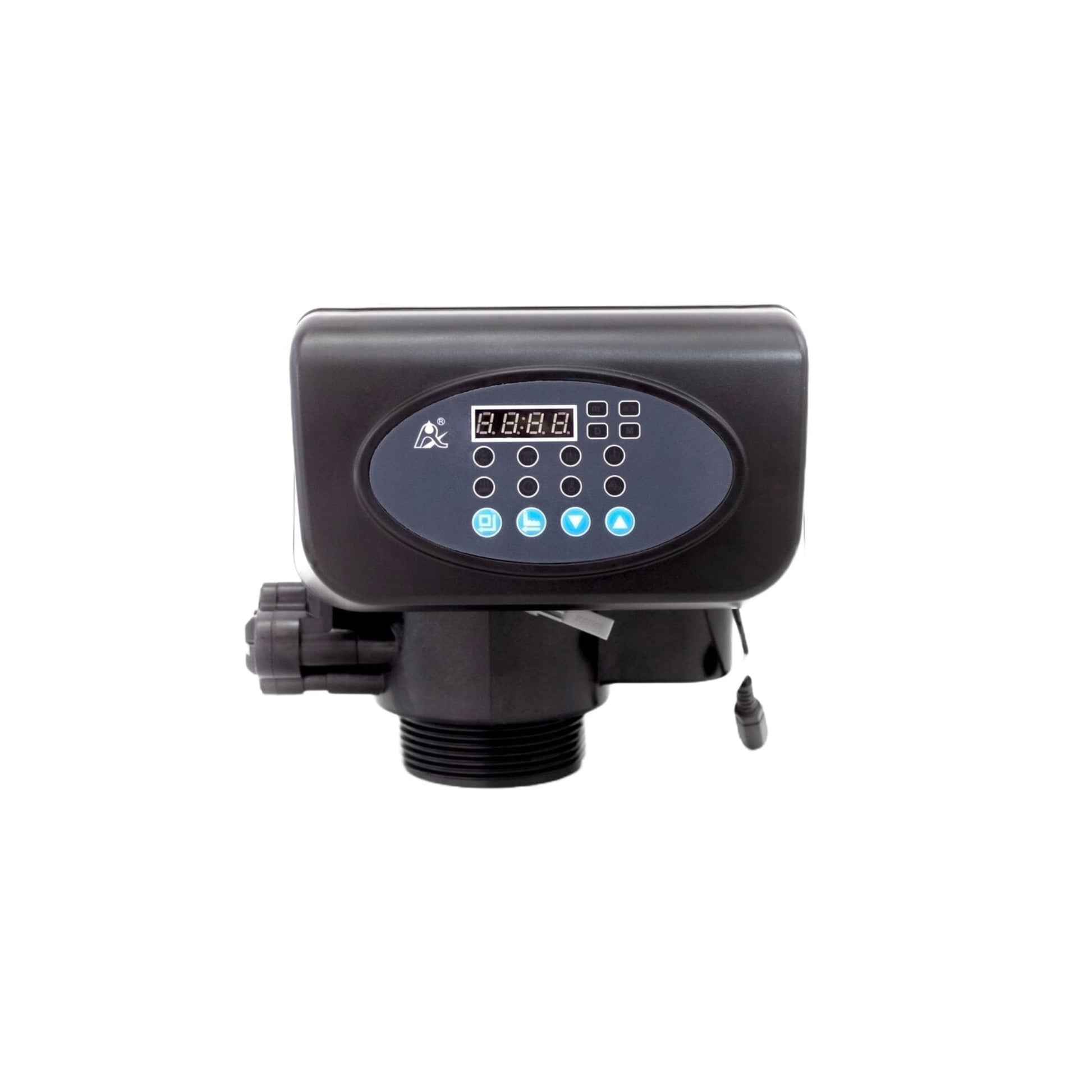

2.5" Runxin F63P3 Softening Valve 4M³/H
2.5" Runxin F63P3 Softening Valve 4M³/H
Couldn't load pickup availability
Experience the comfort and efficiency of soft water with the Runxin F63P3 Softening Valve, expertly designed to automate your water softening system for optimal performance and minimal maintenance.
Engineered for 2.5-inch top-opening FRP vessels, this intelligent control valve manages the regeneration process automatically — saving time, conserving salt and water, and ensuring your household or business enjoys consistently soft, mineral-free water. With a dependable 4M³/h (4000L/h) flow rate and durable construction, the F63P3 combines reliability, precision, and ease of use in one compact unit.
Key Benefits:
• Fully automatic operation for effortless soft water management
• 4M³/h flow rate — ideal for domestic and light commercial systems
• Compatible with 2.5" top-opening FRP softener tanks
• Reduces scale buildup and protects plumbing and appliances
• Improves cleaning efficiency, skin comfort, and overall water quality
• Durable engineering-grade plastic body for long-term performance
Simplify your water softening routine and enjoy the benefits of smooth, scale-free water with the Runxin F63P3 Softening Valve — built for dependable performance and easy integration.
Product features
Product features
Automatic Softening Control Valve for 2.5" Top-Mount FRP Tanks
High Flow Rate: 4M³/h (4000L/h)
Fully Programmable Digital Timer
1" Female BSP Threaded Ports
Durable Engineering Plastic Housing
Designed for Ion Exchange Resin-Based Water Softeners
Low-Maintenance Automatic Regeneration
Filtration Details
Filtration Details
Type: Automatic Softening Valve
Model: Runxin F63P3
Mount Type: Top Mount (2.5" Opening)
Flow Rate: 4M³/h (4000L/h)
Ports: 1" Female BSP (Inlet/Outlet/Drain/Brine)
Control Type: Electronic Timer
Cycle Functions: Service / Backwash / Brine Draw / Slow Rinse / Fast Rinse / Refill
Material: Reinforced Engineering Plastic
Colour: Black
How it Works
How it Works
The Runxin F63P3 automates the water softening process by controlling regeneration cycles based on time or volume.
It periodically backwashes and regenerates the ion exchange resin using a brine solution, effectively removing hardness-causing calcium and magnesium ions.
After rinsing, the valve returns the system to normal operation, ensuring consistent delivery of soft water.
Installation and Maintanence
Installation and Maintanence
1. Mount directly onto 2.5" FRP softener tanks
2. Connect using 1" BSP threaded fittings
3. Program digital timer for automatic regeneration cycles
4. Compatible with 220V AC power supply
5. Minimal maintenance — occasional inspection of brine tank recommended
Technical Specifications
Technical Specifications
Model: F63P3
Brand: Runxin
Tank Opening: 2.5" Top Mount
Flow Rate: 4M³/h (4000L/h)
Port Size: 1" Female BSP
Power Supply: 220V AC / 50Hz
Control Type: Automatic (Digital Timer)
Working Pressure: 0.15–0.6MPa
Working Temperature: 5°C – 45°C
Drain Port: 1" Female BSP
Material: Engineering Plastic
Warranty Information
Warranty Information
12 Month limited warranty against manufacturing defects.
Excludes damage from overpressure, electrical surges, or improper installation.
Warranty and service provided by The Water Filter Factory.
What's in the box
What's in the box
1 × Runxin F63P3 Automatic Softening Valve
