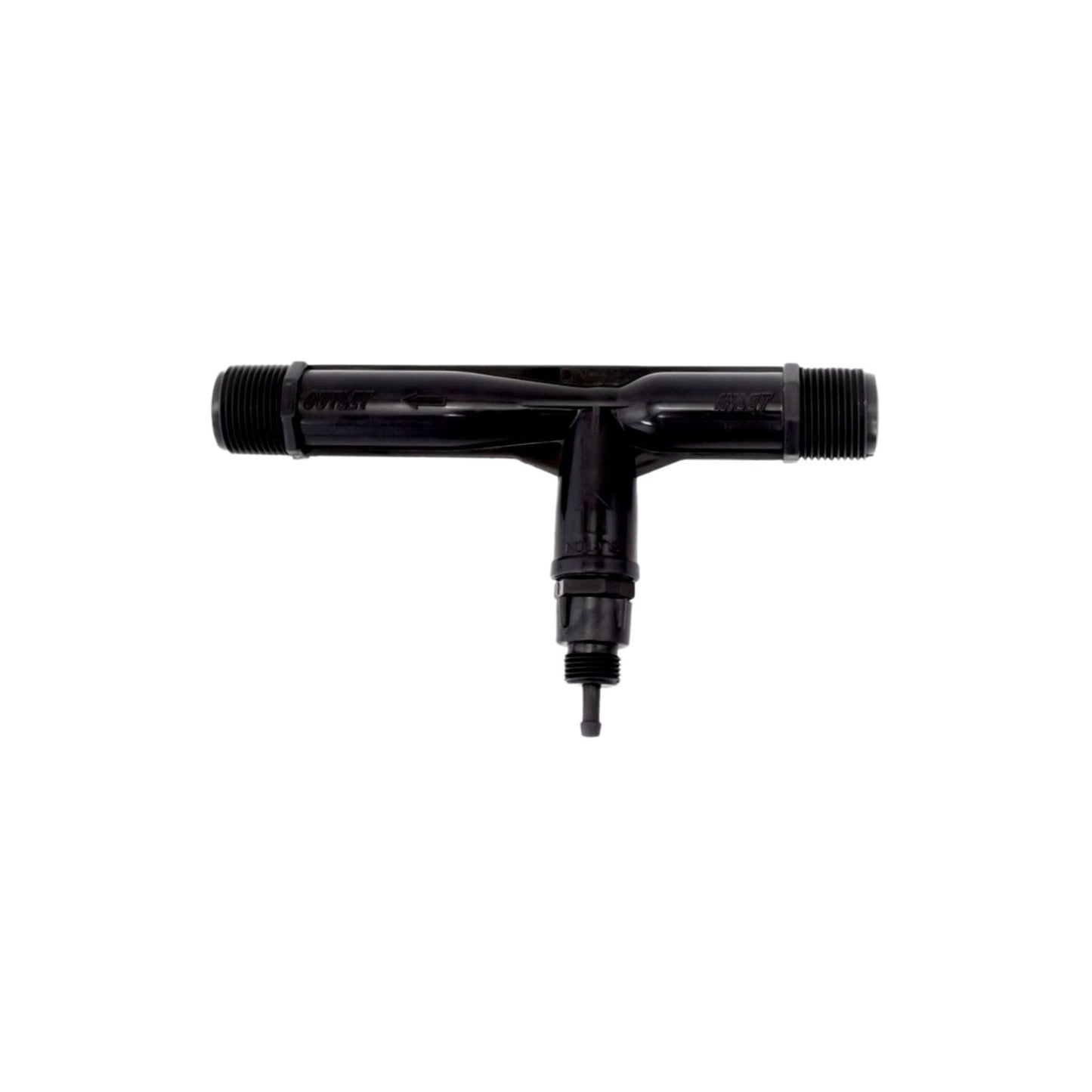

Venturi Injector 1 inch in/out, 1/2 inch Gas, 3-10m3/h
Venturi Injector 1 inch in/out, 1/2 inch Gas, 3-10m3/h
Couldn't load pickup availability
Boost the performance of your water treatment or chemical dosing system with the Venturi Injector (1" x 1/2" x 3–10m³/h) — a high-efficiency mixing tool designed for industrial-grade applications.
Engineered to harness the power of the Venturi effect, this injector creates a powerful vacuum that draws gas directly into a liquid stream, ensuring complete and consistent mixing. Whether you’re injecting ozone for water disinfection, dosing fertilizers, or mixing chemicals, this injector guarantees superior efficiency, reliability, and precision.
Key Benefits:
• High-Flow Capability — 1" inlet and outlet ports handle large liquid volumes effortlessly, ideal for industrial or high-capacity systems.
• Precise Gas Injection — 1/2" gas inlet allows controlled suction of ozone, air, or chemical additives.
• Adjustable Flow Range (3–10m³/h) — Versatile performance for variable flow demands.
• Venturi Suction Power — Creates a vacuum zone to pull gas efficiently into the liquid stream for optimal mixing.
• Durable, Corrosion-Resistant Design — Built from premium-grade materials to withstand ozone and chemical exposure.
Experience consistent, high-performance gas injection with the Venturi Injector 1" x 1/2" (3–10m³/h) — the professional choice for water treatment, irrigation, and industrial fluid handling.
Product features
Product features
1" Inlet and Outlet Ports
1/2" Gas Suction Port
Flow Rate Range: 3–10m³/h
Venturi-Effect Suction for Gas Injection
Corrosion-Resistant Engineering Plastic
Compact, Inline Installation Design
Ideal for Ozone, Air, or Chemical Injection
Filtration Details
Filtration Details
Function: Gas Injection and Mixing Using Venturi Principle
Flow Capacity: 3–10m³/h
Liquid Port Size: 1" BSP (In/Out)
Gas Port Size: 1/2" BSP
Operating Pressure: 1–5 bar (typical)
Vacuum Pressure: Up to –0.9 bar
How it Works
How it Works
Liquid enters through the 1" inlet and passes through the narrowed throat of the injector.
The increased velocity creates a low-pressure zone that draws gas (through the 1/2" port) into the flow.
Gas and liquid mix thoroughly within the injector for efficient treatment or dosing.
Installation and Maintanence
Installation and Maintanence
1. Install inline following the directional flow arrow on the injector body.
2. Maintain proper inlet pressure differential for strong suction performance.
3. Periodically inspect and clean to prevent clogging or mineral buildup.
4. Avoid exposure to highly acidic or incompatible chemicals.
Technical Specifications
Technical Specifications
Inlet/Outlet Size: 1" BSP
Gas Port: 1/2" BSP
Flow Rate: 3–10m³/h
Operating Pressure: 1–5 bar
Vacuum Pressure: Up to –0.9 bar
Material: PVDF / Engineering Plastic
Temperature Range: 5°C–50°C
Dimensions: 20cm x 9cm x 3cm
Weight: 0.116kg
Colour: Black
Mounting Type: Inline Threaded
Warranty Information
Warranty Information
12 Month limited warranty covering manufacturing defects.
Excludes damage caused by chemical incompatibility or incorrect installation.
What's in the box
What's in the box
1 × Venturi Injector (1" In/Out, 1/2" Gas, 3–10m³/h)
