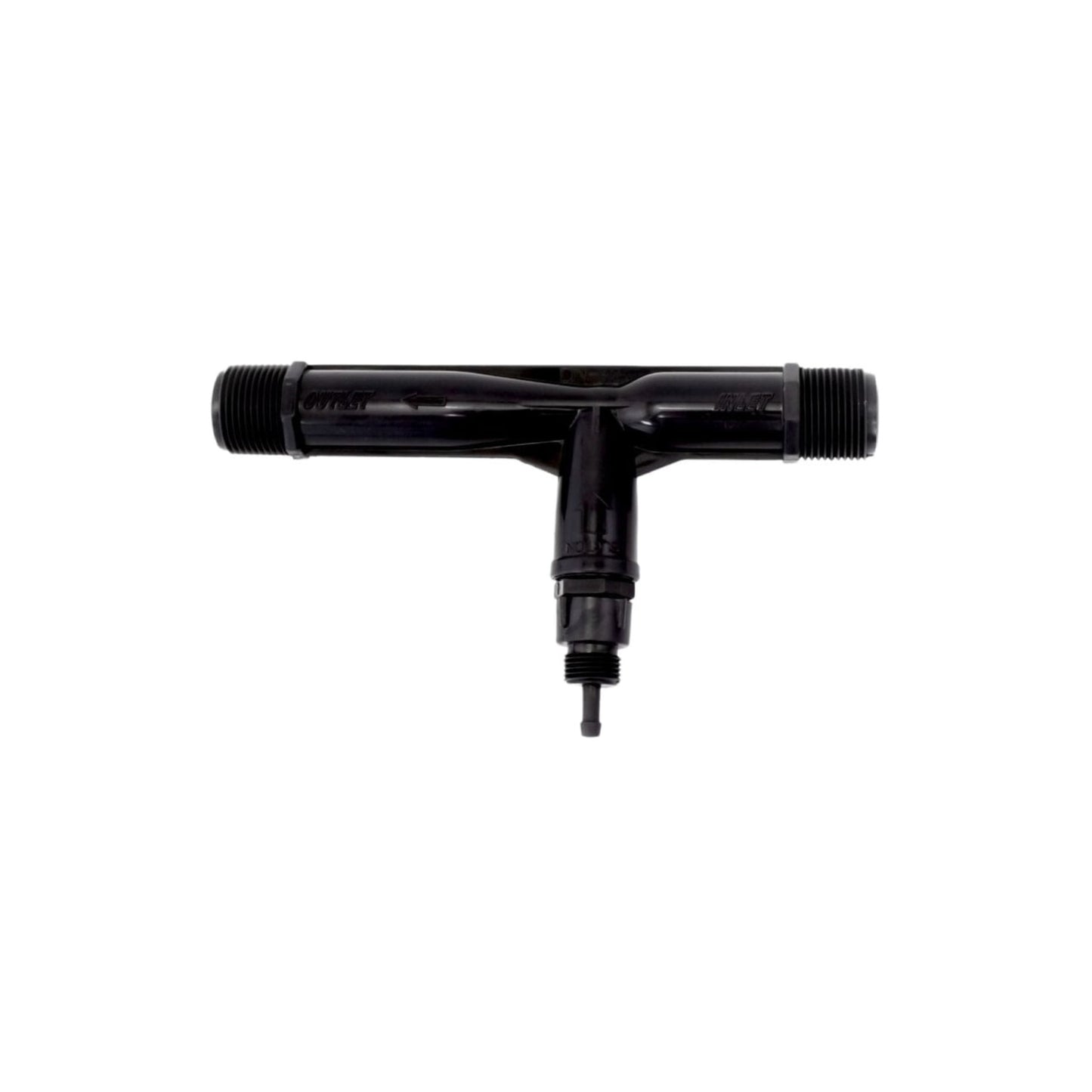

Venturi injector 3/4 inch in/out, 1/4 inch Gas, 1-3m3/h
Venturi injector 3/4 inch in/out, 1/4 inch Gas, 1-3m3/h
Couldn't load pickup availability
Unlock precision mixing and efficient gas injection with the Venturi Injector 3/4" In/Out, 1/4" Gas (1–3m³/h). Designed to utilize the Venturi principle, this injector creates a powerful suction effect that draws gases—such as air, ozone, or chemical additives—directly into a flowing liquid stream for effective and uniform mixing.
Whether you’re treating water with ozone, injecting fertilizers, or dosing chemicals in industrial or agricultural systems, this Venturi injector ensures consistent performance and dependable efficiency.
Key Benefits:
• Precision Gas Injection — Designed with 3/4" liquid in/out ports and a 1/4" gas inlet for controlled injection of air, ozone, or chemicals.
• Efficient Mixing via Venturi Effect — Creates a vacuum zone that efficiently draws in and mixes gas with liquid flow.
• High Flow Capacity (1–3m³/h) — Supports versatile flow rates for residential, commercial, and light industrial applications.
• Durable and Corrosion-Resistant Build — Made from high-quality materials suitable for water treatment and chemical handling.
• Compact and Easy to Install — Simple inline installation allows quick integration into new or existing systems.
Experience the perfect balance of precision and performance with the Venturi Injector (3/4" x 1/4" x 1–3m³/h) — the ideal solution for ozone systems, aeration, and chemical dosing.
Product features
Product features
3/4" Inlet and Outlet Ports
1/4" Gas Suction Port
Flow Rate Range: 1–3m³/h
Venturi Suction Technology
Corrosion-Resistant Construction
Compact and Easy Inline Installation
Ideal for Ozone, Air, or Chemical Injection
Filtration Details
Filtration Details
Function: Gas Injection and Mixing Using Venturi Effect
Flow Capacity: 1–3m³/h
Liquid Port Size: 3/4"
Gas Port Size: 1/4"
Operating Pressure: 1–5 bar (typical)
Vacuum Generation: Up to –0.9 bar
Applications: Ozone Injection, Aeration, Fertilizer Dosing, Chemical Mixing
Material: High-Density Engineering Plastic or PVDF (depending on model)
Temperature Range: 5°C–50°C
How it Works
How it Works
The Venturi Injector operates on the Venturi principle — as liquid passes through the narrowed section, its velocity increases while pressure decreases, creating a suction effect.
This vacuum draws in gas (ozone, air, or other additives) through the 1/4" port.
The gas mixes thoroughly with the liquid stream for uniform distribution and efficient reaction.
Installation and Maintanence
Installation and Maintanence
1. Install inline on the main water line with proper directional flow.
2. Use compatible fittings for secure sealing.
3. Periodically clean to remove deposits or scale buildup.
4. Ensure proper pressure differential between inlet and outlet for best suction performance.
Technical Specifications
Technical Specifications
Liquid Port Size: 3/4" (In/Out)
Gas Port Size: 1/4"
Flow Rate: 1–3m³/h
Operating Pressure: 1–5 bar
Vacuum Pressure: Up to –0.9 bar
Material: PVDF or Engineering Plastic
Temperature Range: 5°C–50°C
Dimensions: 20cm x 9cm x 3cm
Weight: 0.116kg
Color: Black
Connection Type: Threaded BSP
Warranty Information
Warranty Information
12 Month limited warranty covering manufacturing defects.
Excludes damage caused by improper installation or chemical corrosion beyond rated limits.
What's in the box
What's in the box
1 × Venturi Injector (3/4" In/Out, 1/4" Gas, 1–3m³/h)
